Specifications and Configurations
| Ocean® Brand Adj. Girder Beam Clamp Capacities (tons) |
1T | 2T | 3T | 5T | 10T |
|---|---|---|---|---|---|
| Model | OCN-GC1.0 | OCN-GC2.0 | OCN-GC3.0 | OCN-GC5.0 | OCN-GC10.0 |
| I-Beam Width Range (mm) | 75-220 | 75-220 | 80-320 | 80-320 | 90-320 |
| Dimensions (in.) | |||||
| A max | 270 | 270 | 350 | 350 | 365 |
| B min | 185 | 185 | 225 | 225 | 255 |
| B max | 370 | 370 | 500 | 500 | 510 |
| C | 80 | 85 | 117 | 125 | 158 |
| E | 220 | 220 | 265 | 265 | 280 |
| F min | 90 | 90 | 140 | 140 | 170 |
| F max | 165 | 165 | 225 | 225 | 235 |
| G | 25 | 25 | 45 | 45 | 50 |
| Net Weight (lbs.) | 3.8 | 5.0 | 9.0 | 11.0 | 18.6 |

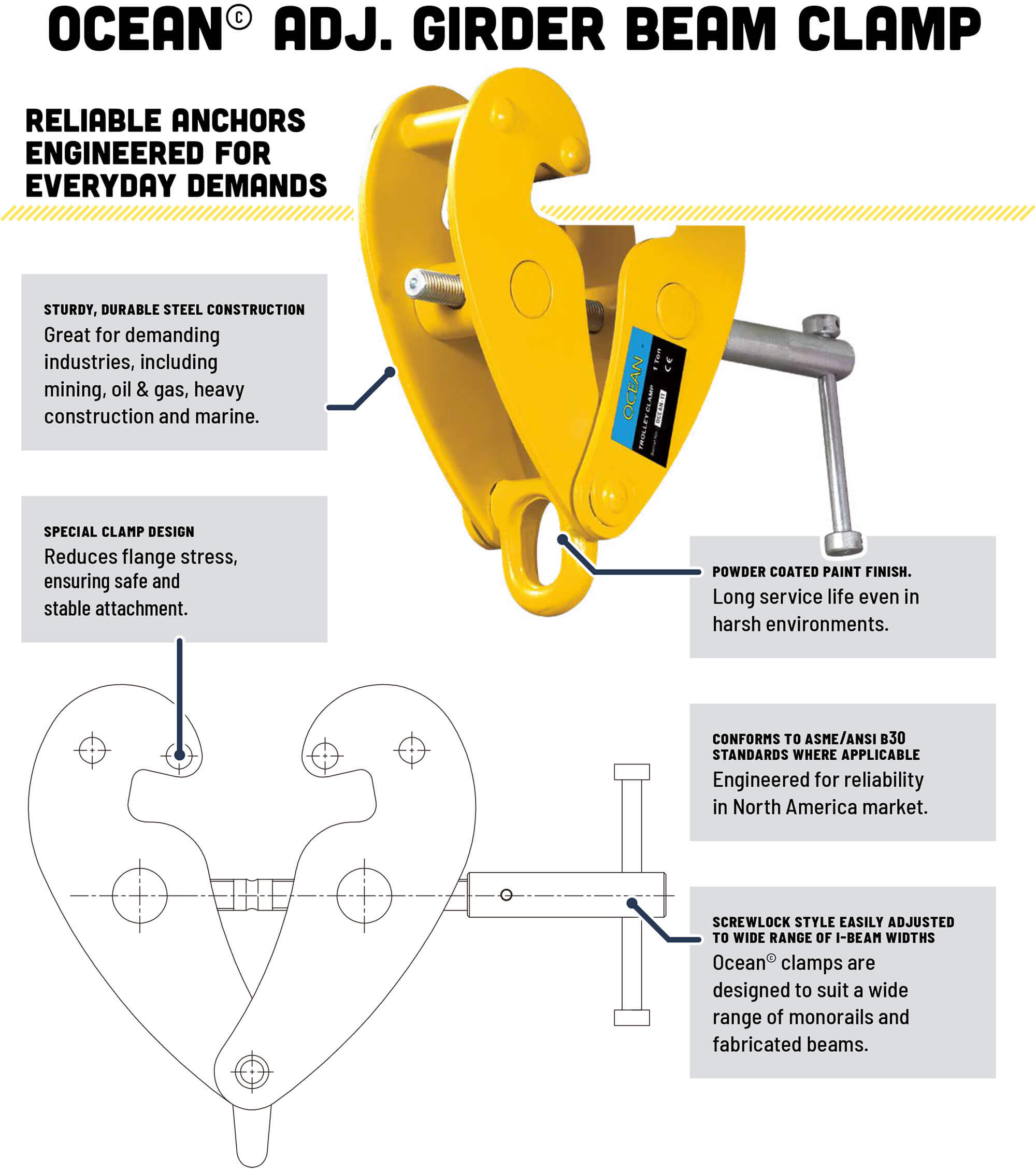

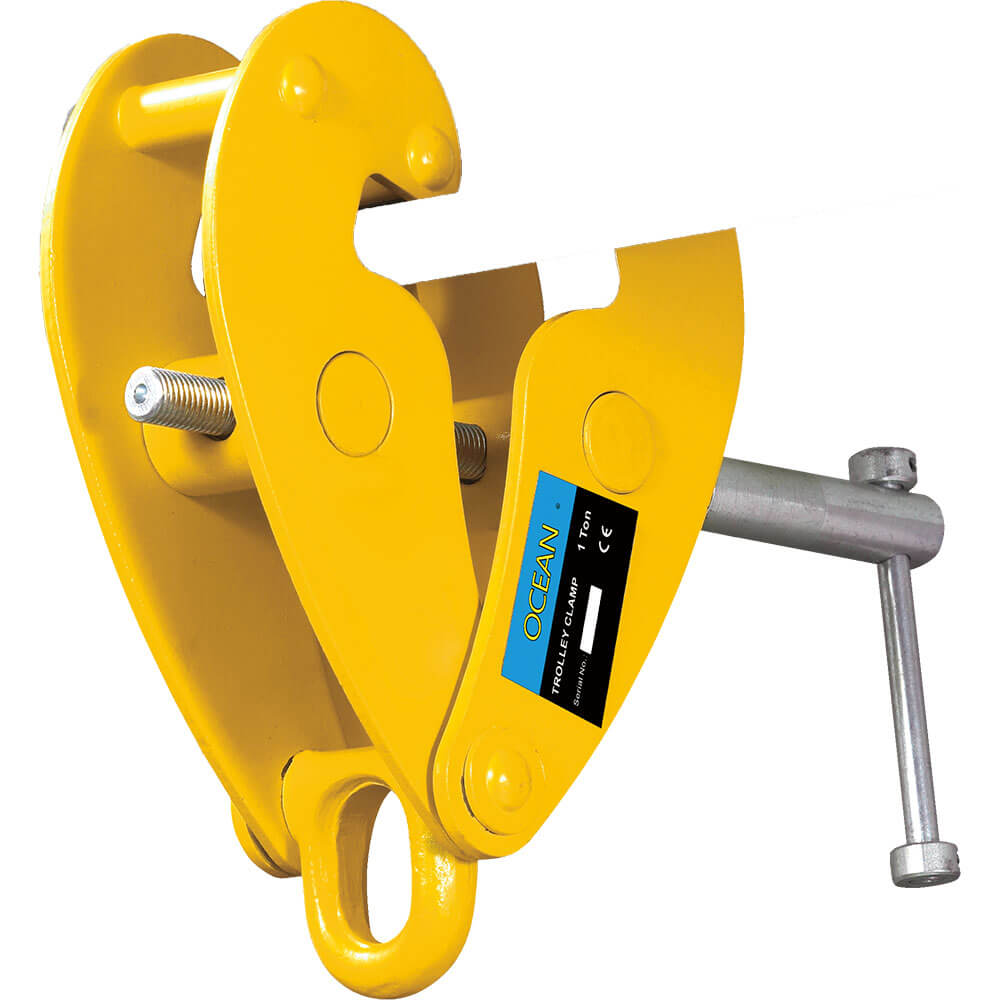

| Key Features of Ocean® Adj. Girder Beam Clamps |
Ocean® Adj. Girder Beam Clamps |
|---|---|
| Capacity Range (tons) | 1T – 10T |
| Construction | Steel |
| Finish | Yellow Powder-Coat |
| Width Adjustment Method | Screwlock |
| Design Notes | Low Headroom; Reduces Flange Stress Not for Dynamic Lifting |
| ANSI/ASME B30 | Meets Standards (where applicable) |
Specifications Table
| Comparing Features of Ocean Trolley & Beam Clamp Models | Plain Trolley | Gear Trolley | Screwlock Adjustable Trolley | Adjustable Girder Beam Clamp |
|---|---|---|---|---|
| Capacity Range (tons) | 0.5T - 10.0T | 0.5T – 30.0T | 1T – 10.0T | 1T – 10.0T |
| Width Adjustment Method | Bolt | Bolt | Screwlock | Screwlock |
| Smallest Model I-Beam Width (mm) | 64-140 (0.5 ton Capacity) | 65-146 (0.5 ton Capacity) | 64-203 (1.0 ton Capacity) | 75-220 (1.0 ton Capacity) |
| Largest Model I-Beam Width (mm) | 125-203 (10.0 ton Capacity) | 144-250 (30.0 ton Capacity) | 150-305 (10.0 ton Capacity) | 90-320 (10.0 ton Capacity) |
| ANSI / ASME B30 | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) |
| Bearing Type | Precision ball bearings with machined tread | Precision ball bearings with machined tread | Precision ball bearings with machined tread | N/A |
| Construction | Steel | Steel | Steel | Steel |
| Finish | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat |
