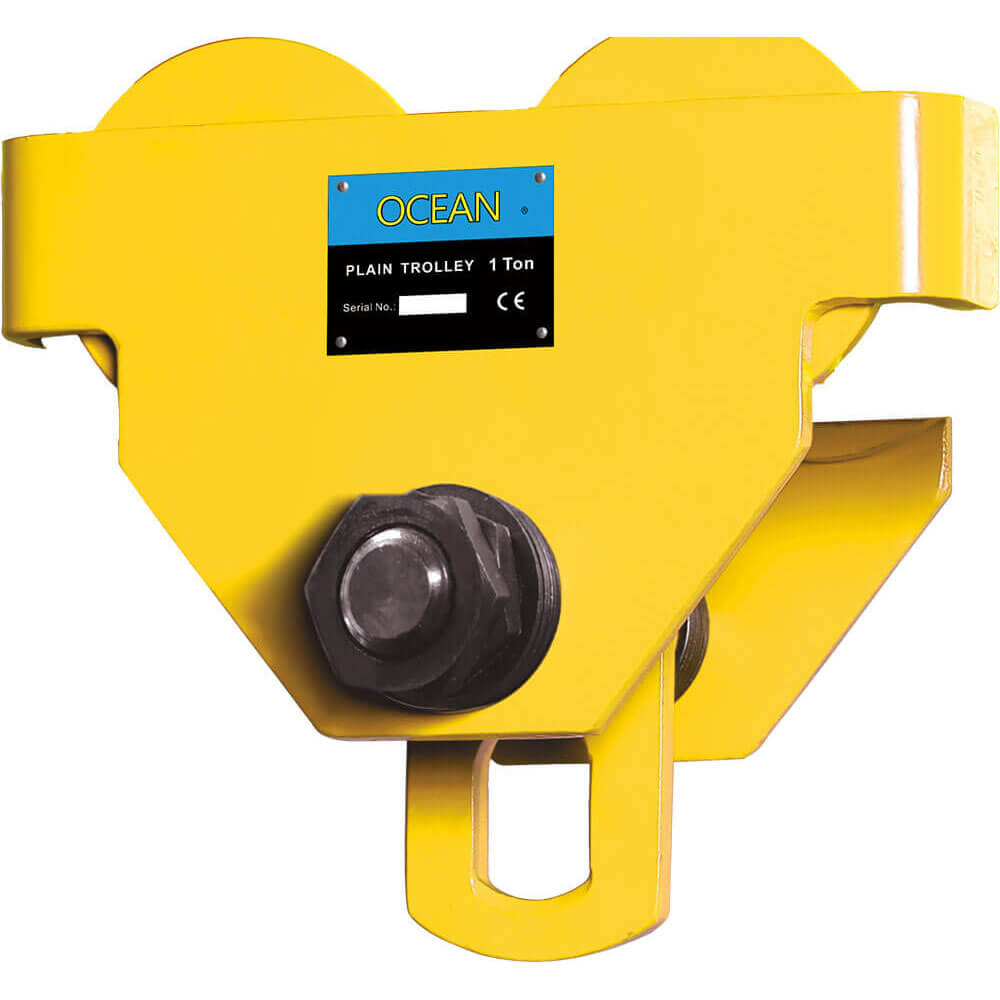

Specifications and Configurations
| Ocean® Brand Plain Trolley Capacities (tons) |
0.5T | 1.0T | 2.0T | 3.0T | 5.0T | 10T |
|---|---|---|---|---|---|---|
| Model | OCN-PT0.5 | OCN-PT1.0 | OCN-PT2.0 | OCN-PT3.0 | OCN-PT5.0 | OCN-PT10.0 |
| Proof Load (tons) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 |
| I-Beam Width Range (mm) | 64-140 | 64-140 | 76-165 | 76-203 | 88-203 | 125-203 |

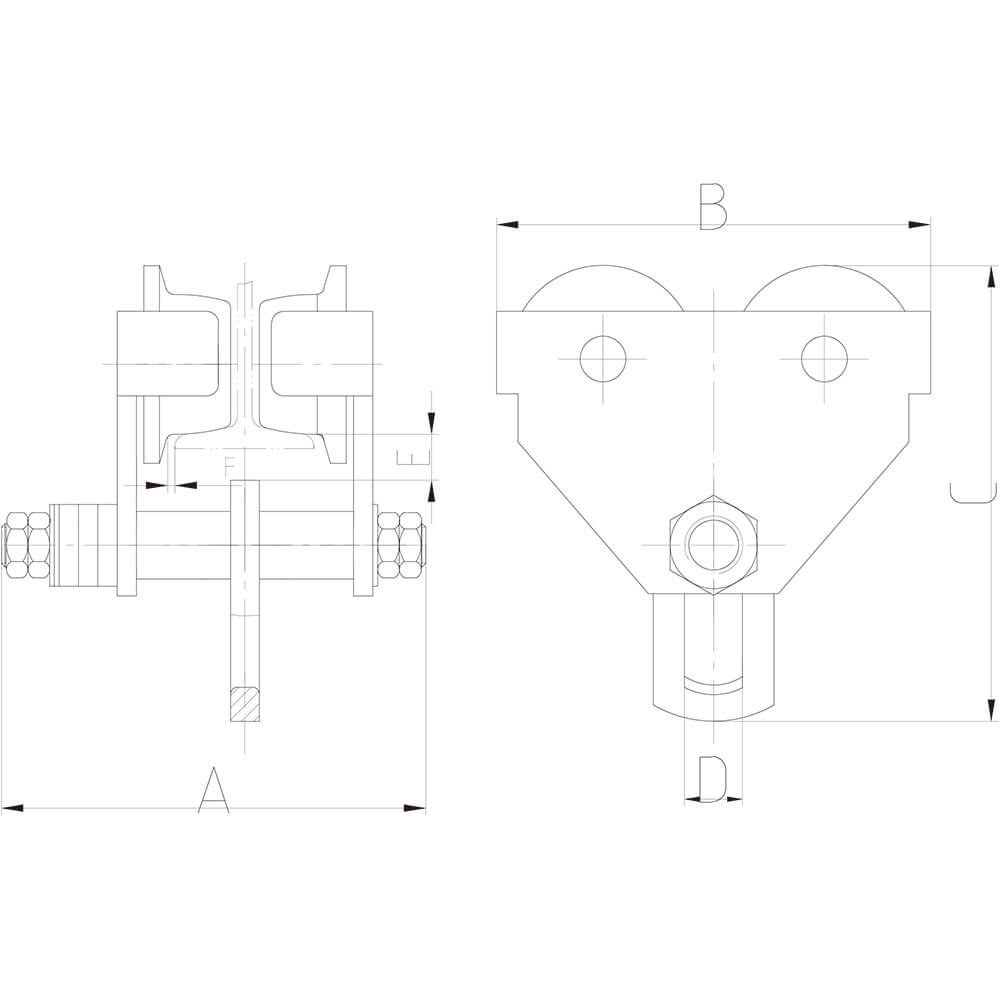

| Dimensions (in.) | ||||||
| A | 230 | 254 | 294 | 344 | 360 | 405 |
| B | 212 | 255 | 302 | 344 | 378 | 455 |
| C | 198.5 | 231.5 | 278 | 338 | 393 | 490 |
| D | 24 | 30.5 | 36 | 45 | 60 | 82 |
| E | 28 | 25 | 27 | 32 | 34 | 36.5 |
| F | ≈3 | ≈3 | ≈3 | ≈3 | ≈5 | ≈5 |
| Min. Radius Curve (m) | 0.6 | 0.8 | 1.1 | 1.4 | 1.0 | 1.3 |
| Net Weight (lbs.) | 7.0 | 12.0 | 20.5 | 33.0 | 51.0 | 86.5 |
| Key Features of Ocean® Plain Trolleys |
Ocean® Plain Trolleys |
|---|---|
| Capacity Range (tons) | 0.5T – 10T |
| Construction | Steel |
| Bearing Type | Precision Ball Bearings with Machined Tread |
| Finish | Yellow Powder-Coat |
| Width Adjustment Method | Bolt |
| ANSI/ASME B30 | Meets Standards (where applicable) |
Specifications Table
| Comparing Features of Ocean Trolley & Beam Clamp Models | Plain Trolley | Gear Trolley | Screwlock Adjustable Trolley | Adjustable Girder Beam Clamp |
|---|---|---|---|---|
| Capacity Range (tons) | 0.5T - 10.0T | 0.5T – 30.0T | 1T – 10.0T | 1T – 10.0T |
| Width Adjustment Method | Bolt | Bolt | Screwlock | Screwlock |
| Smallest Model I-Beam Width (mm) | 64-140 (0.5 ton Capacity) | 65-146 (0.5 ton Capacity) | 64-203 (1.0 ton Capacity) | 75-220 (1.0 ton Capacity) |
| Largest Model I-Beam Width (mm) | 125-203 (10.0 ton Capacity) | 144-250 (30.0 ton Capacity) | 150-305 (10.0 ton Capacity) | 90-320 (10.0 ton Capacity) |
| ANSI / ASME B30 | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) |
| Bearing Type | Precision ball bearings with machined tread | Precision ball bearings with machined tread | Precision ball bearings with machined tread | N/A |
| Construction | Steel | Steel | Steel | Steel |
| Finish | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat |
