Lever Chain Hoists

Lever Chain Hoists

Specifications and Configurations

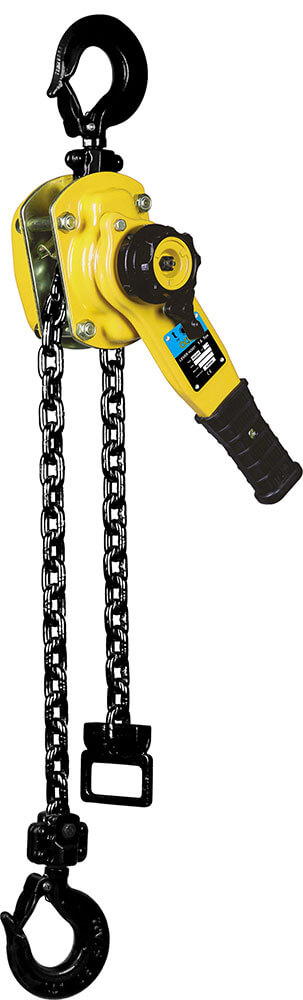

Ocean® Brand Lever Hoist
Capacities (tons)		 0.8T 1.6T 3.2T 6.3T 9.0T
Model OCN-LH0.8 OCN-LH1.6 OCN-LH3.2 OCN-LH6.3 OCN-LH9.0
Capacity (lbs.) 1700 3500 7000 13800 19800

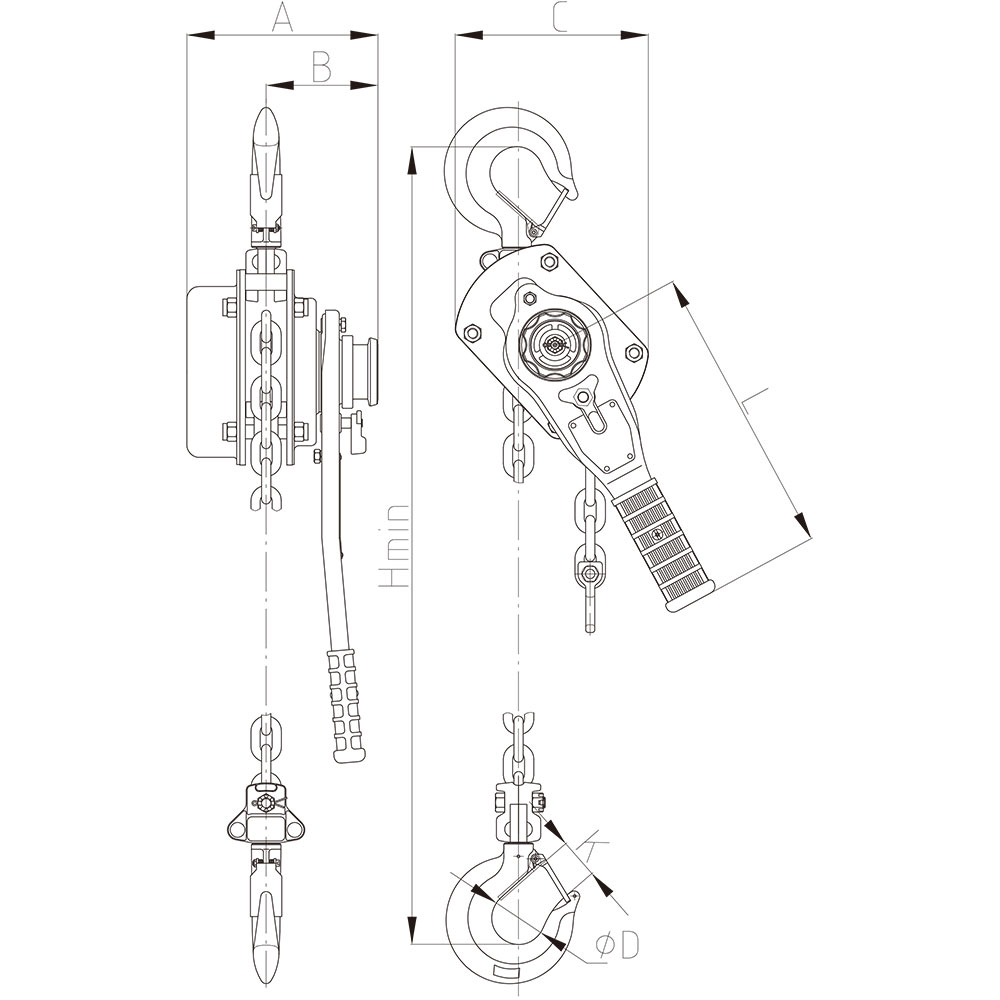

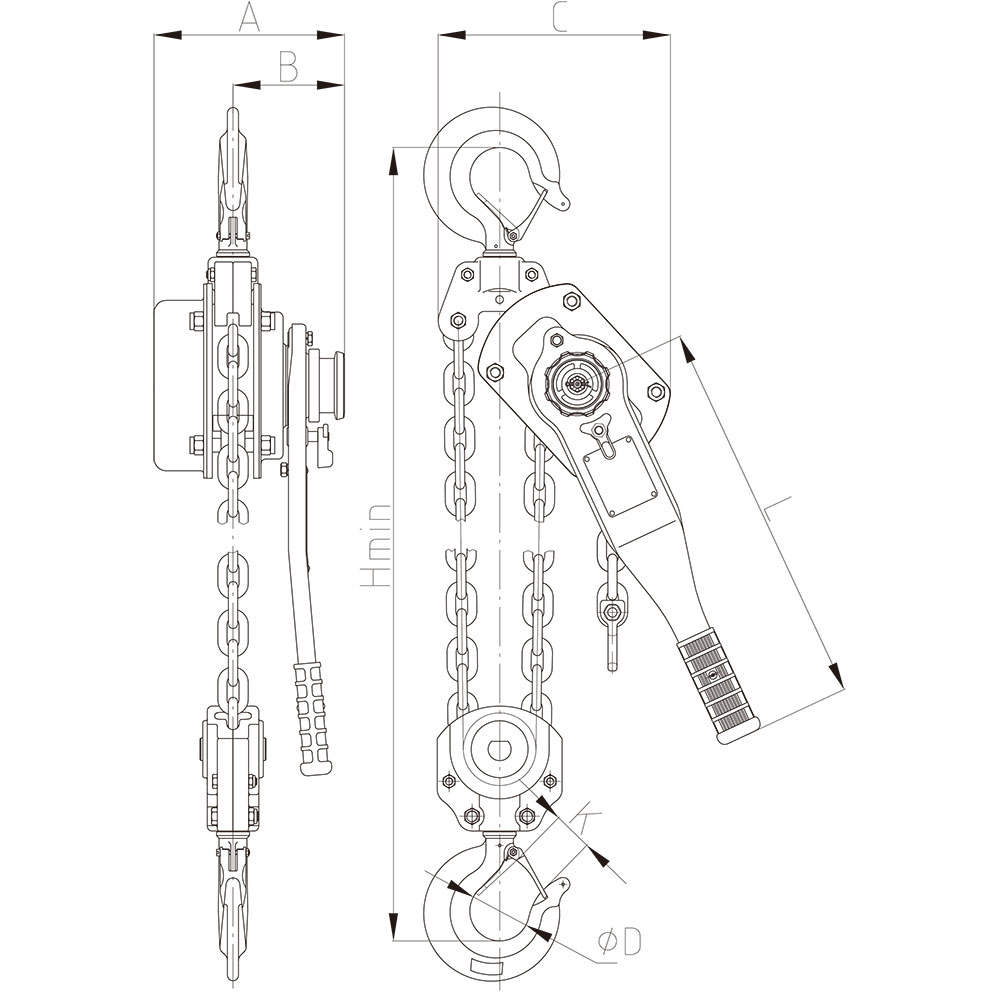

Dimensions (in.)
A 6.30 7.71 8.17 8.19 8.17
B 3.94 4.29 4.80 4.80 4.80
C 5.27 6.18 8.27 9.96 13.31
D 1.57 1.77 2.17 2.68 3.35
H-Min 12.60 14.37 19.29 22.83 32.68
L 9.84 10.63 16.93 16.93 16.93
K 1.02 1.14 1.54 1.69 2.28
Net Weight
(with 10' of chain)		 15.65 23.81 51.37 78.48 92.37
Load Chain (mm) 6x18 8x24 10x30 10x30 10x30
Strands of
Load Chain (#)		 1 1 1 2 3
Effort Required to
Lift Rated Load (lbf.)		 44.96 79.81 75.31 78.68 72.61
Strands Lift Depends on selected chain length: No Chain, 5 ft., 10 ft., 15 ft., or 20 ft.
SKU by Chain Length
No Chain OCN-LH0.8-NC OCN-LH1.6-NC OCN-LH3.2-NC OCN-LH6.3-NC OCN-LH9.0-NC
5' Chain OCN-LH0.8-05 OCN-LH1.6-05 OCN-LH3.2-05 OCN-LH6.3-05 OCN-LH9.0-05
10' Chain OCN-LH0.8-10 OCN-LH1.6-10 OCN-LH3.2-10 OCN-LH6.3-10 OCN-LH9.0-10
15' Chain OCN-LH0.8-15 OCN-LH1.6-15 OCN-LH3.2-15 OCN-LH6.3-15 OCN-LH9.0-15
20' Chain OCN-LH0.8-20 OCN-LH1.6-20 OCN-LH3.2-20 OCN-LH6.3-20 OCN-LH9.0-20
Comparing Features of Ocean©
Chain Hoists & Lever Hoists		 Ocean© Chain Hoists Ocean© Lever Hoists
Capacity Range (tons) 0.5T – 10.0T 0.8T – 9.0T
Overload Protection Included Included
H-Min Range Across Models (in) 11.60 - 31.42 12.60 – 32.68
Construction Steel Steel
Smallest Modal Load
Chain Size (mm)		 5x15 6x18
Largest Model Load
Chain Size (mm)		 10x30 10x30
ANSI/ASME B30 Meets Compliance Standards Meets Compliance Standards
Top & Bottom Hooks Heat Treated Alloy Steel Hooks with
Cast Safety Latches and 360° Swivel		 Heat Treated Alloy Steel Hooks with
Cast Safety Latches and 360° Swivel

Documents

Below is a list of documents related to this product list. Click a link to view the document.

Additional Images

Additional Info

Safety Warning:

Although Ocean strives to manufacture and sell the highest quality rigging and safety gear, use of the gear is dangerous if not used correctly by competent trained professionals. Ocean disclaims any liability resulting from the misuse of its rigging and safety gear. Please take a moment to more thoroughly review our disclaimer.

Ocean rigging and safety gear is only intended to be used by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. As such, Ocean disclaims liability for any misuse or incorrect product selection by our customers.

Rigging and safety gear purchased from Ocean should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.
