Specifications and Configurations
| Ocean® Brand Geared Trolley Capacities (tons) |
0.5T | 1.0T | 2.0T | 3.0T | 5.0T | 10T | 20T | 30T |
|---|---|---|---|---|---|---|---|---|
| Model | OCN-GT0.5 | OCN-GT1.0 | OCN-GT2.0 | OCN-GT3.0 | OCN-GT5.0 | OCN-GT10.0 | OCN-GT20.0 | OCN-GT30.0 |
| Proof Load (tons) | 0.625 | 1.25 | 2.5 | 3.75 | 6.24 | 12.5 | 25 | 37.5 |
| I-Beam Width Range (mm) | 64-140 | 64-140 | 76-185 | 76-203 | 88-203 | 125-203 | 136-203 | 144-250 |
| Dimensions (mm) | ||||||||

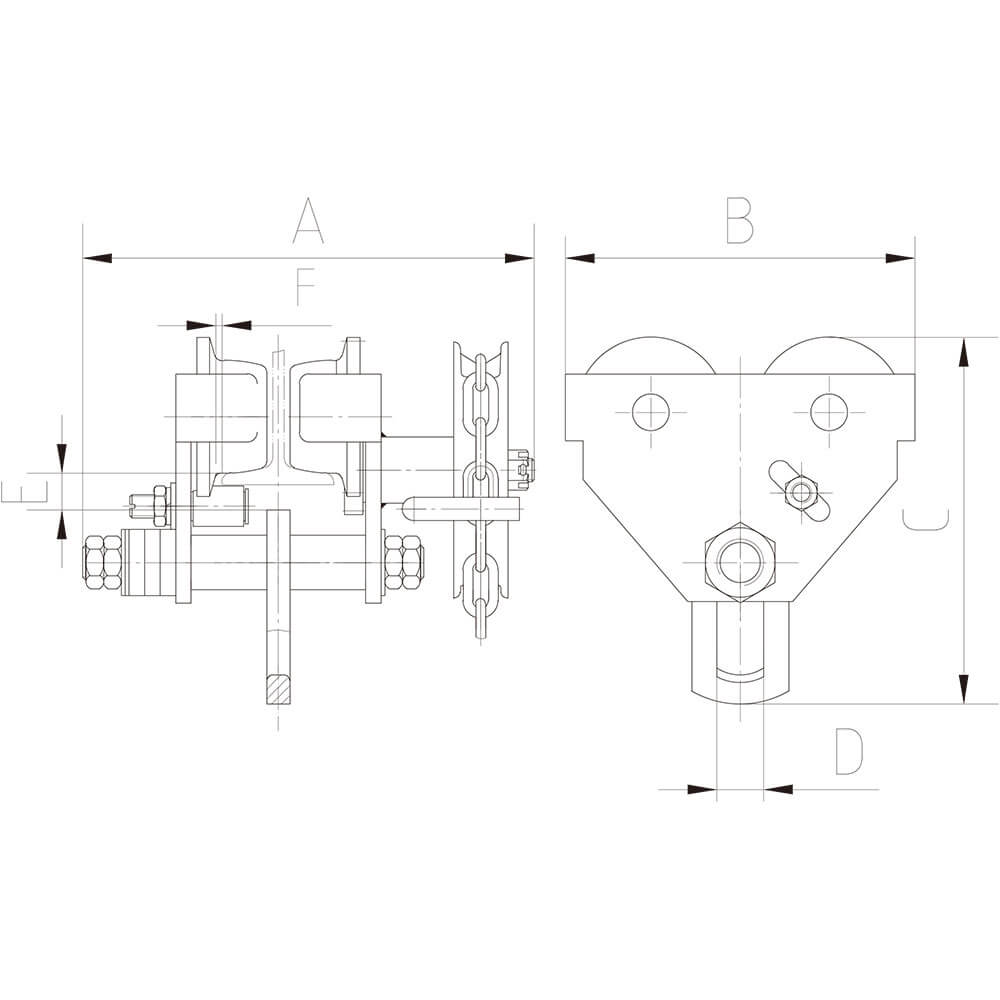

| A | 308.5 | 328.5 | 361.5 | 428.5 | 434 | 487.5 | 523 | 570 |
| B | 212 | 255 | 302 | 344 | 378 | 455 | 642 | 642 |
| C | 198.5 | 231.5 | 278 | 338 | 393 | 490 | 622 | 622 |
| D | 24 | 30.5 | 36 | 45 | 60 | 82 | 110 | 110 |
| E | 28 | 25 | 27 | 32 | 34 | 36.5 | 54 | 50 |
| F | ≈3 | ≈3 | ≈3 | ≈3 | ≈5 | ≈5 | ≈5 | ≈5 |
| Min. Radius Curve (m) | 0.6 | 0.8 | 1.1 | 1.4 | 1.0 | 1.3 | 4.7 | 4.7 |
| Net Weight (lbs.) | 11.6 | 17.0 | 25.5 | 39.0 | 57.0 | 93.0 | 247.5 | 254 |

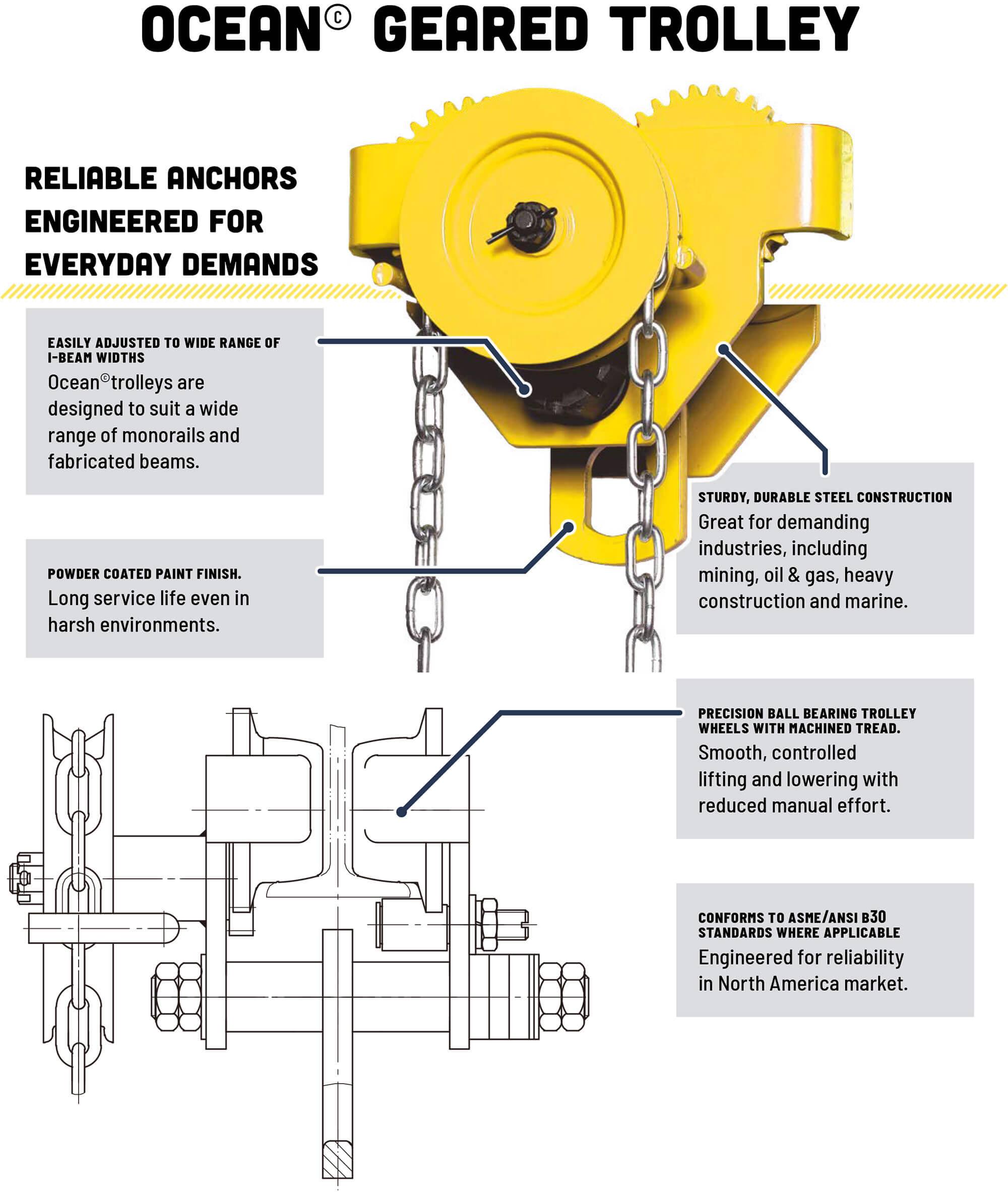

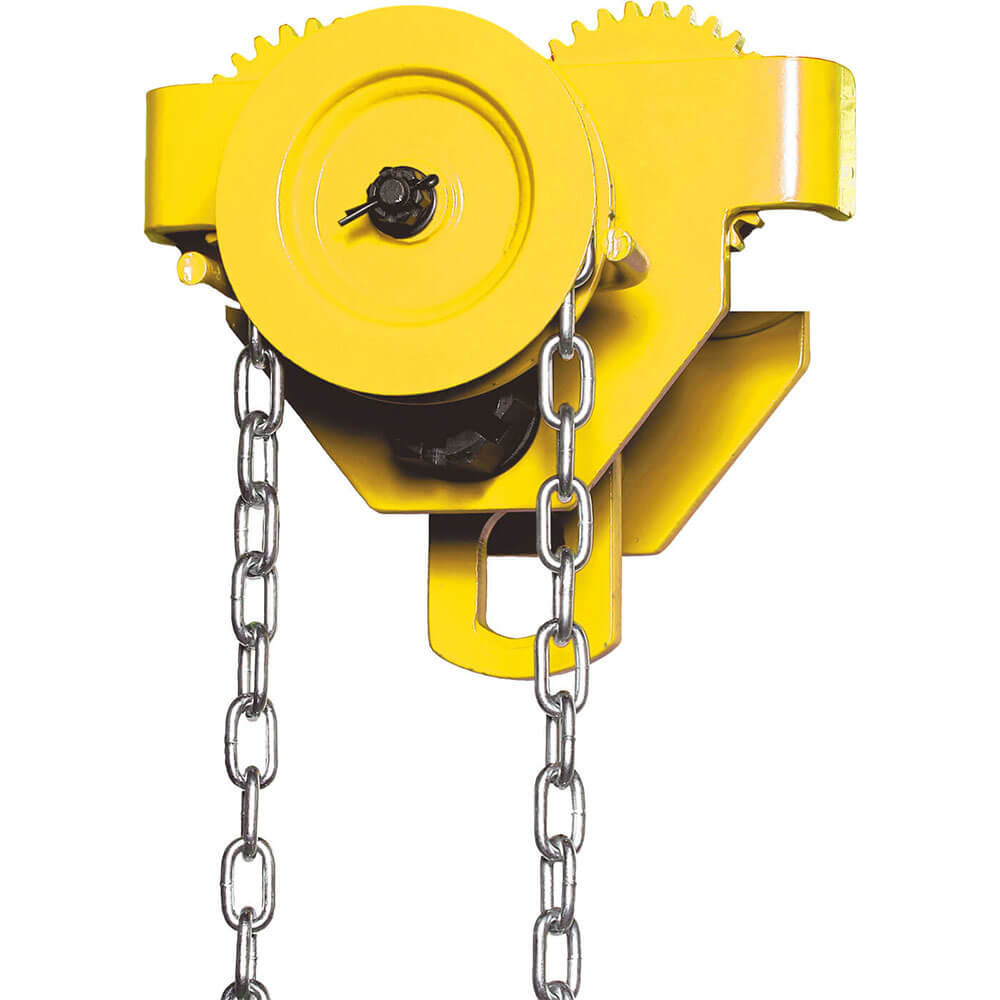

| Key Features of Ocean® Geared Trolleys |
Ocean® Geared Trolleys |
|---|---|
| Capacity Range (tons) | 0.5T – 30T |
| Construction | Steel |
| Bearing Type | Precision Ball Bearings with Machined Tread |
| Finish | Yellow Powder-Coat |
| Width Adjustment Method | Bolt |
| ANSI/ASME B30 | Meets Standards (where applicable) |
Specifications Table
| Comparing Features of Ocean Trolley & Beam Clamp Models | Plain Trolley | Gear Trolley | Screwlock Adjustable Trolley | Adjustable Girder Beam Clamp |
|---|---|---|---|---|
| Capacity Range (tons) | 0.5T - 10.0T | 0.5T – 30.0T | 1T – 10.0T | 1T – 10.0T |
| Width Adjustment Method | Bolt | Bolt | Screwlock | Screwlock |
| Smallest Model I-Beam Width (mm) | 64-140 (0.5 ton Capacity) | 65-146 (0.5 ton Capacity) | 64-203 (1.0 ton Capacity) | 75-220 (1.0 ton Capacity) |
| Largest Model I-Beam Width (mm) | 125-203 (10.0 ton Capacity) | 144-250 (30.0 ton Capacity) | 150-305 (10.0 ton Capacity) | 90-320 (10.0 ton Capacity) |
| ANSI / ASME B30 | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) | Meets Standards (where applicable) |
| Bearing Type | Precision ball bearings with machined tread | Precision ball bearings with machined tread | Precision ball bearings with machined tread | N/A |
| Construction | Steel | Steel | Steel | Steel |
| Finish | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat | Yellow Powder-Coat |
